Configuring AIF WebServices with mapped x.509 certificates

AIF WebServices needs to be authenticated with a Windows user that is configured in Ax. This can be done with Ntlm authentication. If the Ntlm-authentication is not an option, the X.509 authentication can be an alternative. X.509 certificates can be mapped easily to a windows account and so makes it possible for the client to authenticate as an Windows-user.

The following snapshots can serve as a simple “how-to”-setup the X.509 certificates for the AIF-WebServices.

The IIS-configuration

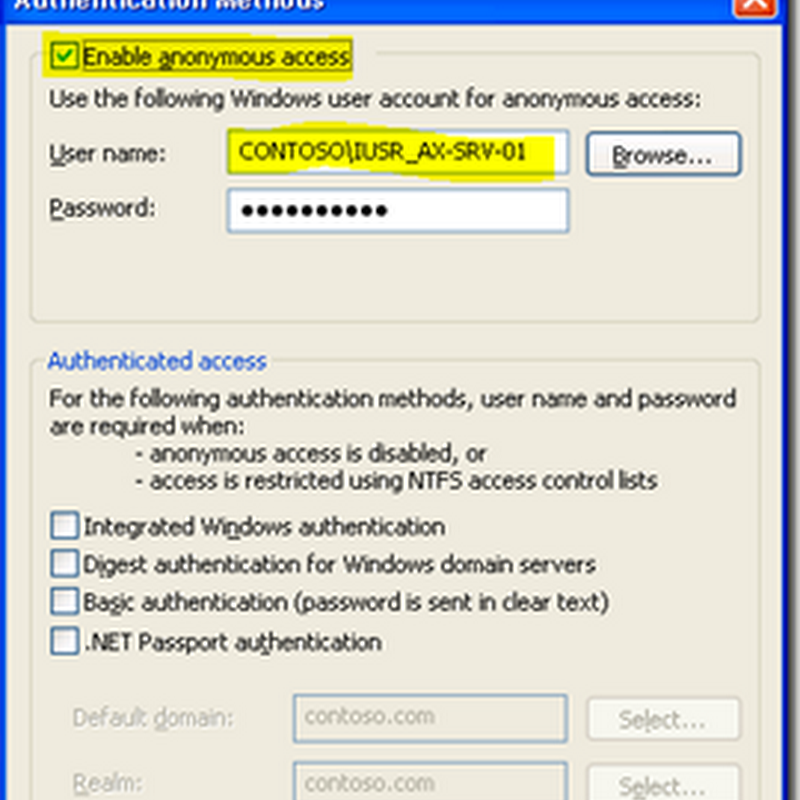

The anonymous access need to be activated:

The client certificate mapping needs to be activated:

After selecting the certificate, the certificate needs to be mapped to the Windows-account:

The service configuration:

The service configuration is configured to authenticate on the transport level:

and the MapClientCertificateToWindowsAccount attribute is activated:

The client configuration:

The client authentication is configured for transport:

And the configuration points to the X.509 certificate. The clientCertificate-element is documented on msdn.

If your are using a dummy-certificate, you need to implement the RemoteCertificateValidationCallback in the client application as described in this article.
